Mivan construction is a modern technique used in large-scale building projects. It helps create concrete structures faster, with fewer joints and a more consistent finish. It basically includes the use of aluminium frameworks instead of a traditional structure to fill in the concrete.
The Mivan construction is mostly used when a construction site needs to be completed within a shorter time frame and needs a uniform and cleaner finish.
What Is Mivan Construction?

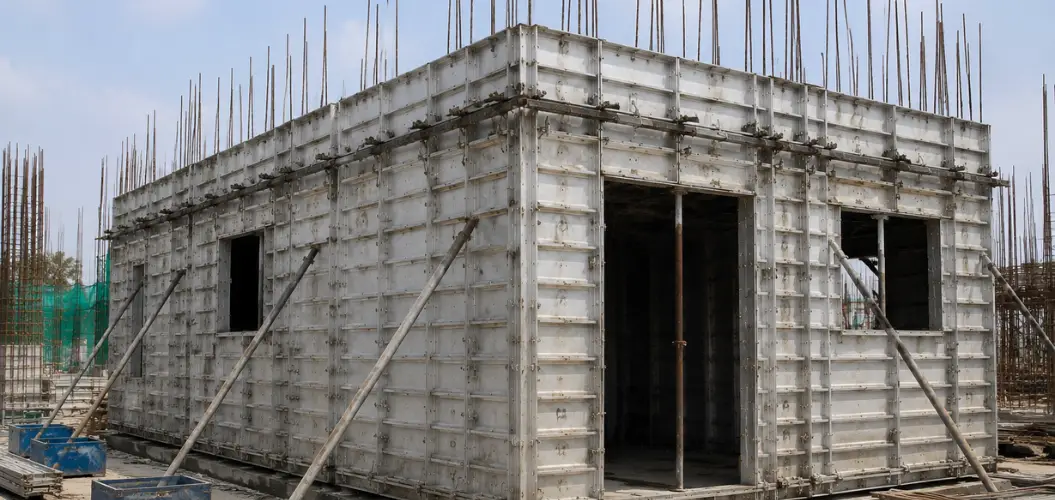

Mivan is a construction technique that uses aluminium formworks to construct concrete walls, slabs, beams, and columns. This technique was pioneered by Mivan Company Ltd. of Malaysia in the 1990s. This construction technique involves casting the structure, rather than constructing it using bricks, followed by plastering at a much later stage.
The monolithic nature of the construction is among the reasons why the construction process has become so popular in modern times.
How Does Mivan Construction Work?
The Mivan construction starts with careful planning. As the aluminium panels are designed according to the project layout, some specifications have to be taken right from the start. Once this is done, the fabrication of the panels comes next, and these are taken to the site and assembled.
Here is the basic process:
- Detailed planning and designing are done through drawings.
- Fabrication of aluminium panels according to the project layout.
- Formwork is assembled at the site in a modular panel arrangement.
- Steel reinforcement and service lines are fixed before concreting.
- Concrete pouring in the moulded formwork takes place.
- Curing and demoulding take place once the concrete attains sufficient strength.
An added advantage of using such a method is the possibility of reusing the same panels multiple times. Mivan shuttering can be used for more than 150 to 200 cycles, making it ideal for repetitive work.
Why Do Developers Prefer Mivan Construction?
Mivan construction technology is usually used in projects requiring repetitiveness, fast construction, and smooth finishing. It can help to accelerate floor cycles and minimise thick plastering and later finishing works.
Major benefits of the system:
- Faster construction cycles due to the reuse of panels floor-by-floor.
- Smoother wall surfaces without much plastering.
- Excellent structural qualities due to the monolithic concrete shell.
- Less material wastage in comparison with most brick-based systems.
- More suitable for repetitive layouts.
Additionally, it also has an economic value. By having a better-controlled process of manufacturing, some imperfections typical of manual brickwork could be avoided. This could make the Mivan technique preferable for construction services when building mass houses or housing complexes.

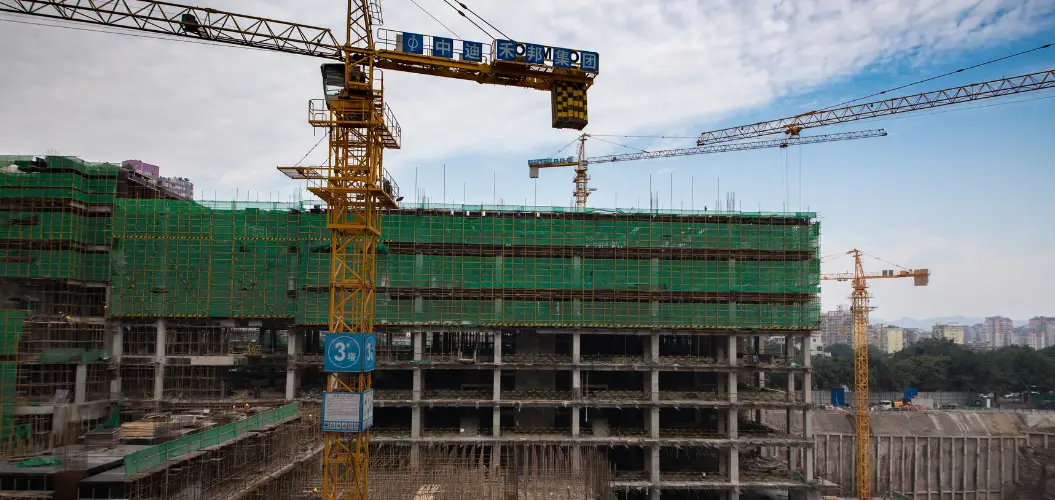

Applications Of Mivan Construction
One common application for Mivan construction is in building projects wherein the same design is replicated on different levels or units. This type of construction can thus be applied to structures that require uniformity and efficiency.
The typical applications include:
- Tall residential buildings
- Mass housing projects
- Affordable housing projects
- Townships
- Hotels and dormitories
- Commercial establishments and other massive constructions
Simply put, wherever the repetition of design makes the use of the formwork system worthwhile, then Mivan construction is recommended.
Mivan Construction Versus Traditional Brick Construction
Here is where the distinction comes in. Although traditional brick construction offers more flexibility throughout the construction process, it tends to be slower because wall construction, plastering, and finishes occur separately. In Mivan, however, the processes of casting walls and slabs follow an organised order.
Mivan Construction
- Faster execution
- Flatter walls
- Reproducibility
- Less flexibility once panels have been created
Brick Construction
- Flexibility throughout construction
- Initially cheaper in some cases
- Slower overall
- Higher workmanship dependency
The bottom line is that it is not a matter of using the better process while discarding the other as old-fashioned. It is a matter of choosing the appropriate construction technique for your project.
What To Keep In Mind Before Choosing Mivan
Mivan sounds efficient, but it needs discipline on-site. The formwork has to be planned properly, the reinforcement must be placed correctly, and the services have to be fixed in advance because later changes are not easy. The method requires skilled labour and careful handling.
Things That Matter Most:
- Correct panel planning
- Accurate reinforcement placement
- Proper concrete quality
- Timely de-shuttering
- Skilled site supervision
It is also worth remembering that the method has a higher upfront cost because aluminium formwork is expensive, even if it can save time and maintenance effort later in larger projects. At RS Builders Mohali, we believe the Mivan construction technique is less about trends and more about choosing a system that supports practical construction work.
Conclusion
Mivan construction has emerged as one of the key elements of modern-day construction because of its advantages, such as rapidity, uniformity, and neat structure. On the other hand, however, it requires proper planning and expertise, which makes it not necessarily a viable option for all projects.
Frequently Asked Questions
1. Can Mivan construction be used for luxury residential projects?
Yes. While commonly associated with large developments, Mivan construction can also be used in premium residential projects where speed, structural consistency and quality finishes are priorities.
2. Does Mivan construction reduce project timelines?
In many cases, yes. Since the same formwork system can be reused repeatedly, construction activities can move faster compared to conventional building methods.
3. Is Mivan construction suitable for seismic zones?
Monolithic concrete structures created through Mivan construction are often preferred in seismic regions because they provide better overall structural continuity and stability.
4. What kind of maintenance does Mivan formwork require?
Aluminium formwork requires regular cleaning, proper handling and periodic inspection to maintain accuracy, extend its lifespan and ensure consistent construction quality.
5. Is Mivan construction environmentally friendly?
Because the aluminium panels are reusable for multiple cycles and material wastage is generally lower, Mivan construction can contribute to more efficient resource utilisation.
